When it comes to door functionality, hinges play an essential role in ensuring smooth operation, stability, and durability. Among the various types of hinges available, butt hinges are among the most commonly used. Whether you're building wooden doors, installing cabinets, or working on office furniture, understanding the basics of butt hinges can significantly improve your project outcomes. This comprehensive guide will answer key questions like “What is a butt hinge?” and “How to install butt hinges?” while exploring their features, installation process, and advantages.

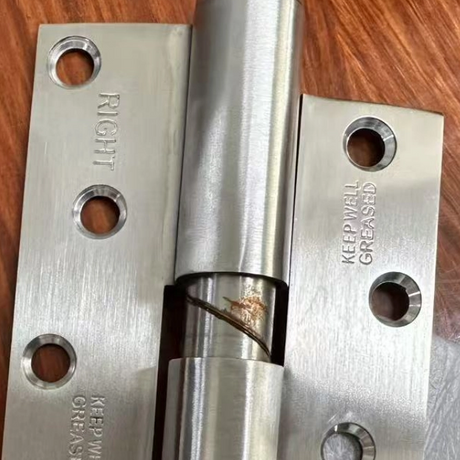

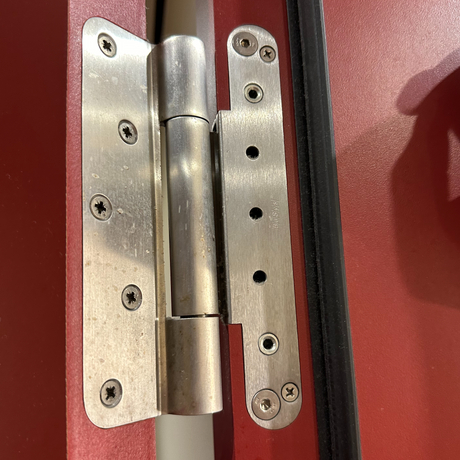

A butt hinge is a type of hinge commonly used for doors, windows, and furniture that connects two parts while facilitating rotational movement. Butt hinges typically comprise two rectangular plates (or "leaves") connected by a central pin. One plate is attached to the door, while the other is installed on the frame, allowing the two parts to pivot smoothly when opened or closed. Butt hinges are widely used because they are sturdy, versatile, and blend well with the aesthetics of wooden doors and other furniture. These hinges are predominantly made of robust materials like stainless steel, brass, or cast iron to ensure durability and strength. They are ideal for both residential and commercial applications and come in different sizes to fit various door weights and dimensions.
Made from high-quality materials like stainless steel, brass, and iron, butt hinges are resistant to wear and tear.
The minimalistic yet efficient design makes these hinges compatible with various door types, including wooden doors.
Butt hinges provide unobstructed, smooth movement during use, ensuring ease when opening or closing a door.
Larger and thicker butt hinges can support heavy wooden or metal doors, making them suitable for high-traffic areas.
Certain variants are coated with anti-corrosive finishes, enhancing their longevity even in humid or outdoor settings.
There are several types of butt hinges available, each designed for specific applications. Below is a table for better understanding:
| Type of Butt Hinge | Description | Common Uses |
|---|---|---|
| Standard Butt Hinge | Basic hinge type used for everyday applications. | Household doors, cabinets. |
| Ball-Bearing Hinge | Contains ball bearings for smoother operation and reduced friction. | Heavy-duty commercial doors. |
| Heavy-Duty Butt Hinge | Made with extra strength to support heavier doors. | Oversized doors, high-traffic areas. |
| Decorative Butt Hinge | Aesthetic-enhanced hinge with ornate designs. | Vintage or decorative furniture. |
| Spring Butt Hinge | Includes a spring to ensure the door closes automatically. | Fire doors, bathroom doors. |
Installing butt hinges may seem daunting if you're new to the process, but following the correct steps will make it simple and effective. Here’s a step-by-step guide to installing butt hinges on a wooden door.
Butt hinges Screwdriver Chisel Power drill Measuring tape Pencil or marker Screws (usually come with the hinges)
Start by selecting the appropriate size and type of butt hinge for your door. The size should complement the door's weight and design. Hold the door in place and ensure it fits correctly within the frame before proceeding with the hinge installation. Mark the door and frame where the hinges will go.
Measure and mark the positions for the hinges on the side edge of the door. Typically, one hinge is placed about 6 inches from the top, another 9 inches from the bottom, and a third hinge (optional) centered between the two for added stability. Transfer these marks onto the door frame as well.
Using a chisel, carefully carve out shallow recesses (mortises) on both the door and the frame where the hinge plates will fit. Take your time to ensure a snug fit. Ensure the depth of the mortise is equal to the thickness of the hinge leaf.
Place the butt hinge into the mortise on the door and use a pencil to mark the screw holes. Drill pilot holes for the screws to prevent the wood from splitting. Secure the hinge to the door using screws, ensuring they are tightened firmly but not over-torqued.
Align the door with the frame and fit the other plates of the hinges into their respective mortises on the frame. Repeat the same process of marking, drilling pilot holes, and attaching screws.
Open and close the door several times to ensure the hinges are functioning smoothly. Adjust the screws if needed to eliminate any misalignment or wobbling.
Always use high-quality screws to ensure durability. Double-check hinge alignment to avoid uneven gaps when the door is closed. Consider using a power drill for quicker and more precise pilot hole drilling.
Opt for materials like stainless steel or brass for better durability, especially if installing outdoor or bathroom doors prone to moisture.
The hinge size depends on your door's thickness and weight. For standard interior wooden doors, hinges measuring 3–4 inches in height are generally sufficient.
While mortised hinges are stable and flush with the door, you can opt for surface-mounted hinges. However, they may not offer the same seamless look.
Most doors require two butt hinges. Heavier or larger doors, such as entry doors, may need three or more hinges for additional support.
A ball-bearing hinge includes small ball bearings to reduce friction, making it ideal for heavier or high-traffic doors. Standard hinges lack this feature but work well for lighter applications.
When dealing with wooden door hinges, functionality and aesthetics are crucial. Butt hinges strike the perfect balance between these two factors and are trusted for their durability. Here’s why butt hinges are an excellent choice:
They provide a clean look when the door is closed. Their robust construction ensures they can handle daily use. They are versatile enough to fit various door styles and sizes. They allow for a full 180° opening without obstruction.
